JSZ Three-Phase Epoxy Resin Cast Voltage Transformer

Ceho provides high-quality JSZ Three-Phase Epoxy Resin Cast Voltage Transformer. The core of this product is based on Faraday's law of electromagnetic induction. When the primary winding is connected to a high-voltage line, the magnetic field generated by the alternating current is coupled to the secondary winding through the iron core, inducing a proportionally reduced voltage signal. Key design features include:

Linear transmission characteristics: High-permeability silicon steel sheets are used for the iron core to ensure a linear relationship between magnetic flux density and voltage, with an error controlled within 0.2%;

Phase consistency: The symmetrical winding layout and epoxy resin curing process together reduce phase angle deviation, meeting the signal synchronization requirements of relay protection;

Insulation synergy: After curing, the cast epoxy resin forms a uniform insulation layer, which both isolates high voltage and assists in heat dissipation, preventing partial discharge.

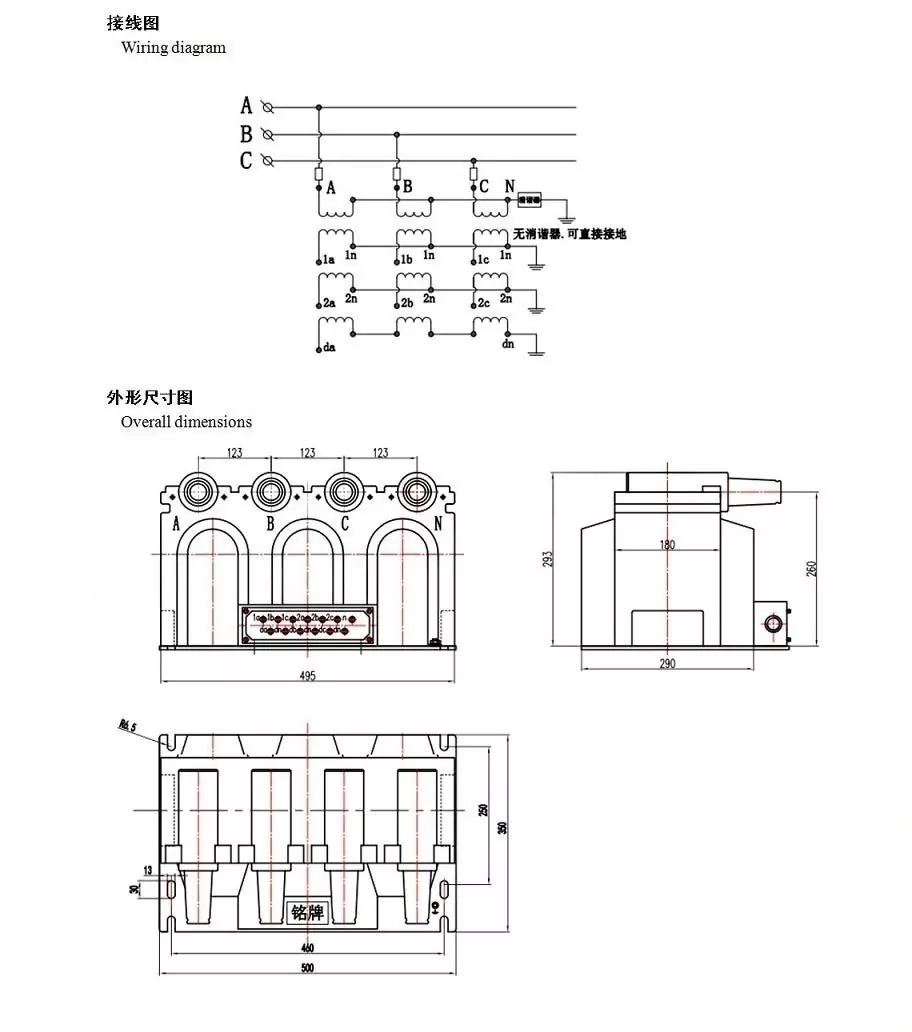

1. Rated output and its relative accuracy class only one altemative.

2. If your data go beyond the above mentioned scopes, please make an agreement with us.

Extended Applications in Industrial and Commercial Sectors

In non-power systems, JSZ Three-Phase Epoxy Resin Cast Voltage Transformer with its pollution-resistant and maintenance-free characteristics, has expanded into the following scenarios:

Heavy Industrial Power Monitoring: Real-time monitoring of voltage fluctuations in high-voltage distribution cabinets in steel mills, chemical plants, etc.;

Commercial Building Power Distribution: Data centers, hospitals, and other locations with high requirements for power supply continuity; the cast-in-place structure avoids the risk of insulating oil leakage;

Rail Transit Power Supply: Adapting to frequent start-stop conditions in subway traction substations; its mechanical strength is superior to porcelain-insulated instrument transformers.

Frequently Asked Questions

1. What are the differences between JSZ three-phase epoxy resin cast voltage transformers and ordinary voltage transformers?

JSZ three-phase epoxy resin cast voltage transformers utilize an epoxy resin vacuum casting process, resulting in significantly superior insulation performance compared to traditional oil-immersed or dry-type voltage transformers. The core differences are threefold: First, the one-piece casting technology eliminates internal air gaps, controlling partial discharge to below 5pC; second, the integrated three-phase structure saves 40% of installation space while avoiding inter-phase electromagnetic interference; third, the hydrophobic nature of epoxy resin makes the product suitable for harsh environments with humidity levels exceeding 95%, whereas ordinary transformers require additional moisture-proof devices.

2. How does epoxy resin casting technology improve the performance of voltage transformers?

Epoxy resin casting achieves performance breakthroughs through three key technologies:

Mechanical Strength: The casting body has a flexural strength of 120MPa, enabling the product to withstand earthquakes of magnitude 7.

Thermal Stability: Glass transition temperature (Tg) ≥110℃, ensuring accuracy deviation <0.2% within the range of -40℃ to +70℃.

Insulation Life: Passes C2/E2 level aging tests, with an expected lifespan more than 15 years longer than oil-immersed transformers.

3. How to determine if a JSZ three-phase epoxy resin cast voltage transformer needs replacement?

Replacement should be considered when any of the following conditions occur:

Dielectric loss factor (tanδ) exceeds 150% of the factory value during routine testing.

Secondary winding DC resistance change rate >±3% (refer to DL/T726 standard).

Outer surface shows cracks or carbonization marks ≥3cm².

Continuous abnormal buzzing sound (>85dB) during operation.
